Project: Computation of multi-phase flows by a Finite difference/Front tracking method
Abstract
Multiphase flows play a very important
role in various engineering applications. Many examples can be found in
the petrochemical and food industry. Most of the prediction
methods for multiphase flows have been based on so-called two or
multifluid models. In such a model volume averaged equations for the
different phases are solved. Due to the averaging procedures a lot of
information, related to the small scale dynamics, is lost. Therefore
these models are of limited use in practical applications and
improvement is necessary. More complete mathematical models can be
devised, but their implementation requires very large computer
resources, such as only now are coming available, combined with
efficient numerical algorithms and modern computer languages. This is
the path to be pursued in the proposed project. The governing equations
will be solved for every phase separately, without volume averaging, and
applying appropriate boundary conditions on the interface between the
phases.
Phd Students financed by NWO
Tenured staff financed by TU-Delft
Computational methods
In this project we make use of a
combined Volume of Fluid (VOF) and Levelset (LS) method to calculate
two phase flows. The LS method is primarily used for the
interface advection and the VOF method is used to ensure the
conservation of mass. At the last Computational science meeting we have given a short overview. The method is described in detail by Sander van der Pijl.
Highlights

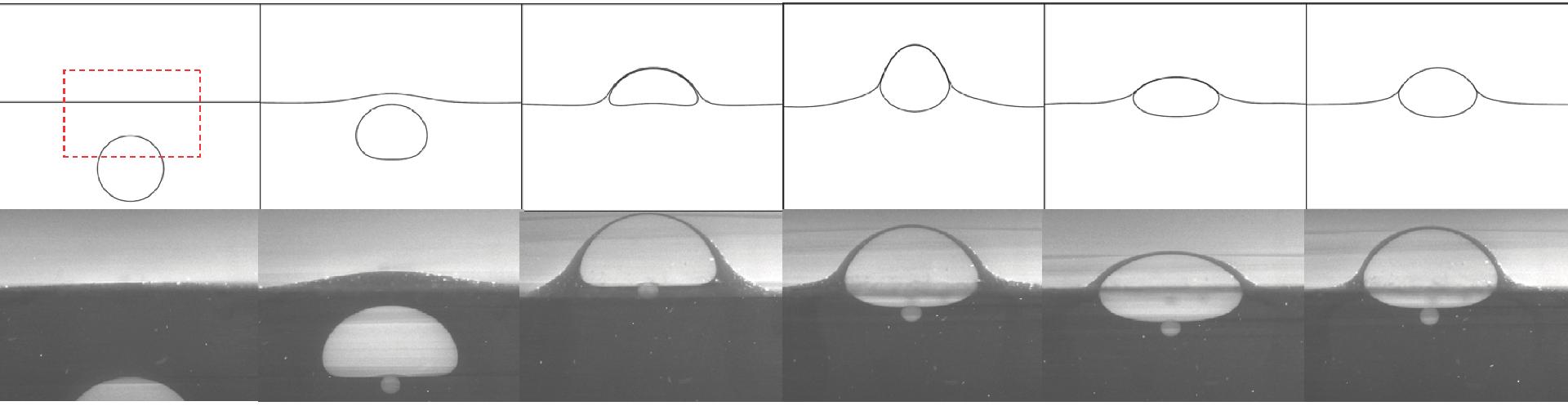

A rising oil droplet in water. The top
part of the figure is simulated with our numerical model. The lower
part of the figure is obtained experimentally in our laboratory.
The small difference between the snapshots 4 and 5 is due to
differences in surface tension forces between simulation and experiment
(the exact value of the surface tension in the experiment is not known)

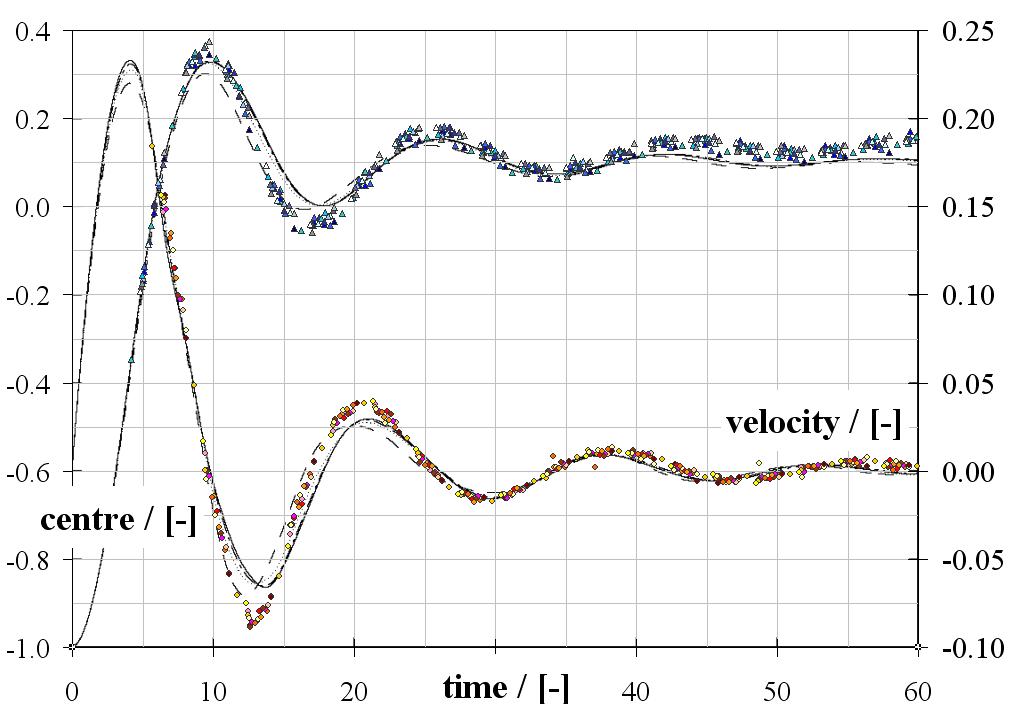

The rise velocity and position of the oil bubble, obtained from the simulations (lines) and experiment (symbols)
A small movie of a falling droplet
